Masoneilan™ Model 535H-536H - Steam, Gas or Liquid Service
Pressure Regulator for Reducing, Back Pressure and Differential Service.
535H-536H Series Key Features and Benefits:

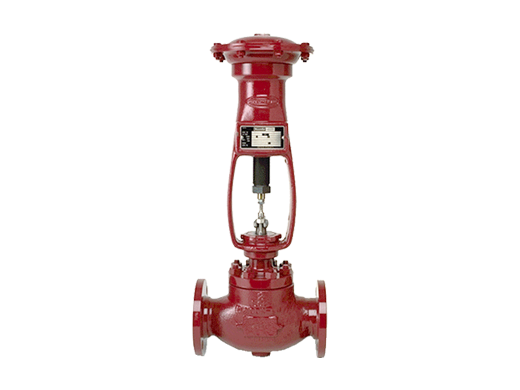

The Masoneilan Model 535H / 536H pressure regulators from Baker Hughes are designed to provide accurately reduced pressures of air, liquid, saturated and superheated steam. They are available in sizes ¾", 1", 1 ½", and 2" with the full area and reduced trim to handle the small-to-moderate flow applications where IEC 60534-4/ANSI/FCI 70.2 Class IV or VI shut-off is required.
For temperatures over the rating of the diaphragm material, the regulator must be mounted with the actuator below the centerline of the regulator body. The diaphragm will be protected from the high temperature by a condensate barrier in the sensing line and actuator diaphragm case. If installed otherwise, an adequate condensate barrier must be incorporated. Consult your VSI Masoneilan expert for information.
535H-536H Series Specifications:
Function
- Pressure Reducing 535H
- Differential Pressure Reducing 535H-50
- Back Pressure 536H
- Differential Back Pressure 536H-50
Service
- Steam, Gas, Liquids
Body
- Type: High Capacity Globe Flow Direction: Flow-to-Open
Bonnet
- Type: Bolted, Standard Bolted, Extension - Optional/p>
Body and Bonnet
- Materials: Carbon Steel 316, Stainless Steel
- Chrome-Molybdenum Steel
Trim
- Plug Type: Disc
- Seat Ring: Threaded or Quick Change
- Guide: Heavy Top Guided
- Capacity: Full Area, Reduced Capacity in All Sizes
- Characteristic: Quick Opening
Actuator
- Type: 10900 Series
