High-capacity, V-ported Control Ball Valve

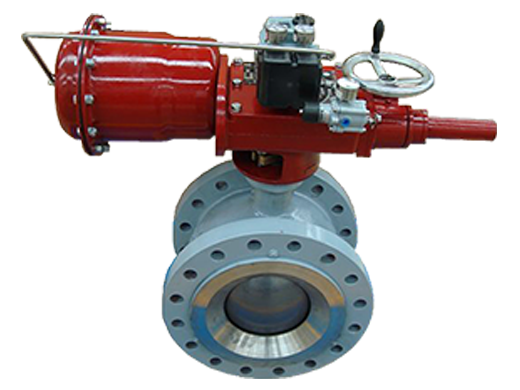

Masoneilan 36005 high-capacity V-ported control ball valves
These high-capacity V-ported control ball valves offer automatic throttling capability with flexible shutoff options, simplified maintenance needs, and enhanced operational reliability.
36005 Series Key Features and Benefits
The V-Max rotary control valve offers high-capacity, heavy-duty automatic throttling capability. The valve’s advanced design features offer substantial benefits, including:
- Simplified alignment
The valve’s integrally cast raised face flanges (in compliance with ASME 150 or 300 Class standards) eliminate the need for long tie rods, significantly simplifying the alignment process. - Installation flexibility
To meet a variety of application needs, the valve is available with two different face-to-face dimensions: standard construction complies with ISA S75.04 and IEC 534-3-2 standards and a short pattern complies with the ANSI B16. - Enhanced flow capacities
A straight-through flow pattern provides exceptional capacities, while the patented dual-characterized V-port ball combines an equal percentage flow characteristic with high capacities and greater than 500:1 rangeability. - Excellent leakage control
A standard EF(emission-free) seal packing system provides long-term, zero leakage† shaft sealing performance.
36005 Series Specifications:
Sizes
- 1" through 12" (25 through 300 mm)
Ratings and Connections
- Flanged: ANSI 150 – 300
Body Materials
- Carbon steel Stainless steel
Actuator
- Model 33 spring diaphragm
- Model 31/32 spring diaphragm
Trim
- Dual characterized V-Ported segmented ball
Inherent Characteristics
- Equal percentage
