Camflex 35002, a truly Universal Rotary Globe control valve
When the original Camflex was introduced in 1968 it created a revolutionary new category of control valves -the Rotary Globe. This new type of valve converged the best control features of a conventional globe valve with a rotary action to produce a valve capable of replacing at least 80% of the control valves in use at that time.
Many improvements and enhancements have been made since that time, with over 1 million Camflex valves installed in a wide range of process control applications. Everything from the most basic water applications up to severely erosive services that would tear other valves apart. The Masoneilan Camflex valve is designed first and foremost to be an excellent control valve and has proven to truly be a Universal Rotary Globe control valve.
35002 Series Key Features and Benefits:

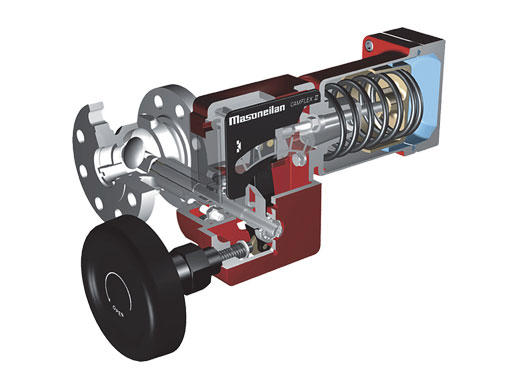

The heart of the Camflex valve is its eccentric plug. The eccentrically rotating, double offset plug CAMs into and out of the seat. This camming action eliminates friction throughout its rotation since the plug moves away from the seat as it opens, unlike other rotary valve types. This ensures precise control at all openings. The plug is offset such that the trailing edge of the plug face will contact the seat ring first when closing. Additional plug rotation causes the plug arms to flex slightly, moving the plug face into full contact with the seat. This flexing action ensures tight long-term seating with smooth seating/unseating action.
- Linear Flow Characteristic with Higher Turndown
Camflex’s linear flow characteristic provides a slight modification as the plug approaches the seat. As the plug cams into the seat, the rate of change in flow is reduced gradually until the plug contacts the seat. This provides a Cv ratio of 100:1 for stable operation over a wider range in flow. Most traditional globe-style control valves offer a 50:1 maximum. - Wide Application Range
The standard construction of the Masoneilan Camflex valve includes features that are either optional or simply not available in competing valves. - Integral Extension Bonnet
The integrally cast extension bonnet provides effective radiation of heat in high-temperature applications to allow the use of low-friction TFE packing materials across the full rated service temperatures of -196˚C to 400˚C (-320˚F to 750˚F). Graphite-based packing is available as an option for fire-safe applications. - Standard Low-Emissions Packing
One of the biggest sources of fugitive emissions in plants and pipelines are valves, specifically, emissions leakage from the packing box and sealing gaskets. With an integral bonnet design, the Camflex completely eliminates emissions from the bonnet joint, a huge differentiated benefit over globe valves of similar pressure class.
The Camflex further stands out minimizing packing leakage as every valve produced today comes standard with the EF Seal and a low-emissions packing system. This simple double O-Ring sealed packing system satisfies FCI 91-1 (EPA) requirements.
In addition, the Optional Low-E packing system has been independently certified to the ISO 15848-1 Class A requirements with both Helium and Methane gas tests. Measured results are more than 25x tighter than the <100 ppm requirement. This system also satisfies the U.S. EPA Certified Low Leak Technology (CLLT) requirements. - Designed to Resist Erosion
Hard-faced or solid Stellite plug is standard in every Camflex with optional seat rings and retainers available for erosive applications.
Guide bushings are located outside the flow stream to prevent the impingement of damaging debris on critical guiding surfaces.
These features help provide an extended service life in harsh services. - Smaller, Lighter, Easy to Handle
The Masoneilan Camflex II is also much easier to install and maintain thanks to its flexible body options. Available in Threaded, Flangeless or Flanged ends to match pipe connection requirements. The flanged construction is also offered in the Camflex GR configuration, which matches the face-to-face dimension of most standard globe valves allowing simplified replacement of existing valves.
Regardless of the end connections option, Camflex valves are much smaller and lighter than globe valve products – typically half the size and half the weight. - Minimized Parts
The Masoneilan Camflex II incorporated product stewardship from the initial concept. Not only does it eliminate a bonnet gasket in the standard design, it only requires one plug across a single valve line size. The design features different seat rings to achieve a variety of flow conditions without the hassle of changing a plug, cage, and/or stem size. This will help minimize the required inventory on the shelf and share a common part among other Camflex installations of the same body size. - Low-Noise Trim Option
An optional patented differential velocity device (DVD) separates compressible flow streams into a high-velocity core and a low-velocity envelope flow stream. This differential velocity concept is similar to that used in commercial jet engines and provides up to 18 dBA noise attenuation.
35002 Series Specifications
Sizes
- 1" through 16" (25 through 400 mm)
Ratings and Connections
- Flanged: ANSI 150 – 600
- Flangeless: ANSI 150 – 600 UNI-DIN 10 – 100
- Screwed: NPT (1" through 2")
Body Materials
- Carbon steel Stainless steel High nickel alloy
Actuator
- Model 35 spring diaphragm
- Model 70 Series cylinder
Trim
- Eccentric rotary plug
Inherent Characteristics
- Linear
