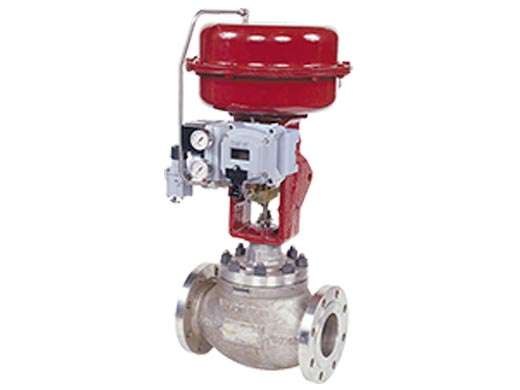

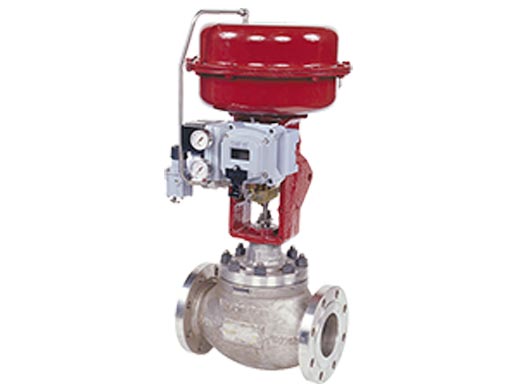

Masoneilan 21000 Series Single Port Valve
High-Performance Top-Guided Globe Valve from AVI
VSI offers the Masoneilan 21000 Series heavy top-guided globe valve for a wide range of automated process control applications. The 21000 Series product line features a single-ported design configuration, which permits numerous trim, actuation, and instrumentation solutions.
Masoneilan 21000 Globe Valve Features:
- Reliable
Rugged top-guiding of the plug promotes maximum valve stability under adverse conditions. The inherent ruggedness of the 21000 Series is field-proven, with thousands of units installed in process control plants around the world operating successfully with various fluids under mild and extreme conditions. - High Performance
The combination of trim designs, actuator stability, shutoff capabilities, and superior valve positioning offers optimum control performance. The 21000 Series is also available in various materials, pressure ratings, and end connections offering a complete high-performance valve platform.
21000 Series Specifications
Size
- 3/4” through 8” (20 through 200 mm)
Ratings & Connections
- Flanged: ANSI 150 – 2500, UNI-DIN 10 - 400
- Welded: BW or SW
- Screwed: NPT 3/4” through 2” (20 through 50 mm)
Body Materials
- Carbon steel; stainless steel; chrome-moly
Actuators
- Model 87/88 multi-spring diaphragm; cylinder
Trim
- Single seat plug top guided; Lo-dB and anti-cavitation trims, single or double stage are available
Inherent Characteristics
- Linear or equal percentage
21000 Series Options
- Lo-dB* Noise Attenuation
- Anti-Cavitation
- Reduced Capacity & Low Flow Trim
- Cryogenic Configuration
- Tight Shutoff
- Environmental Packing
- Advanced Digital Positioning & Control
