Masoneilan 10000 Series Double Port Valve
Masoneilan 10000 Series double seated control valves from VSI
Semi-balanced designs, provide high allowable pressure drops, reduced actuator thrust requirements, and large flow areas to handle dirty fluid applications effectively.

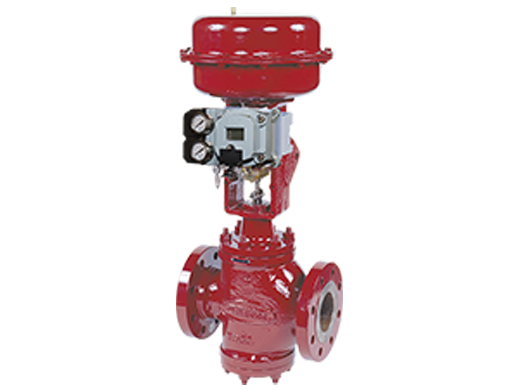

Masoneilan 10000 Series Double Ported Globe Valve
10000 Series Features:
- Enhanced Performance and Reliability
Separate top and bottom guides in the Masoneilan 10000 Series provide heavy-duty plug and stem support throughout the valve stroke range. This results in excellent throttling control characteristics and high product reliability. - High-Pressure Drop Capability
The Masoneilan 10000 Series offers a semi-balanced trim construction, which allows for application in higher-pressure drop applications using standard actuation. This also helps to reduce product complexity and overall assembly size and weight. - Dirty Service Design
Large flow areas within the 10000 Series design, make it an excellent choice for applications involving dirty fluids. Foreign particles can pass through the valve without negatively affecting control performance. - Easy Field Maintenance
The 10000 Series is designed for top and bottom entry, allowing for quick access to the key trim and soft good components. This also permits easy access to the top and bottom guides for repair or replacement.
10000 Series Specifications
Size
- 2” through 24” (50 through 600 mm)
Ratings & Connections
- Flanged: ANSI 150 – 1500, UNI-DIN 10 - 250
- Welded: BW or SW
- Screwed: NPT 3/4” through 2” (20 through 50 mm)
Body Materials
- Carbon steel; stainless steel; chrome-moly
Actuators
- Model 87/88 multi-spring diaphragm; cylinder
Trim
- V-port or contoured plug; top and bottom guided
Inherent Characteristics
- Equal percentage
- Llinear
- Quick opening
10000 Series Standards and Regulations
- Reduced Emissions
The 10000 Series can be supplied with the Masoneilan LE Packing design to provide low emissions performance meeting various environmental regulations worldwide. - NACE Compliance
Construction for Sour Service Applications in accordance with NACE standard MR 0103 is readily available. Applications requiring compliance to MR 0175, 2003 Rev or ISO 15156 can also be provided.
