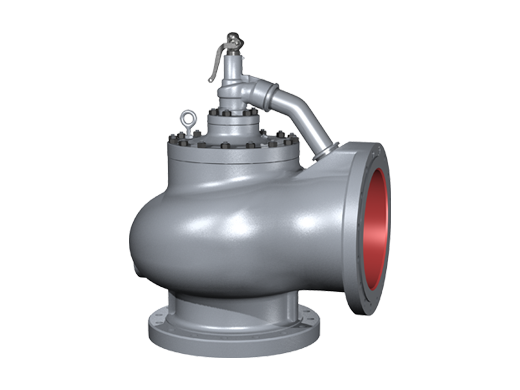

13900 Series Pilot-Operated Safety Relief Valve
The Type 13900 Series pilot-operated safety relief valve combines high capacity with simple construction, designed to ASME section VIII. It consists of a small conventional, fail-safe pilot valve and a high-capacity main valve platform. The main valve can be configured with orifice sizes up to 200 square inches to help reduce the number of valves required for system overpressure protection.
Greater total system efficiency driven by the main valve's ability to handle more than 3,000,000 lbs. of steam per hour. It has 7:1 discharge capacity over "T" orifice and 2:1 over "W" orifice valves.
Simple and efficient valve design helps reduce the need for excessive inventory and maintenance time.
Ability to test the pilot and main valve in the field without disconnecting the main valve inlet and outlet lines.
Considering a variety of important factors, our valve experts can help determine the right pressure relief valve solutions for your power and energy applications:
The 13900 Safety Relief Valve is ideal for unfired boiler applications:
- Handles extra-large capacity requirements up to 3,000,000 lbs. per hour.
- Compact, light design lowers installation cost.
- In-line disassembly and repair capabilities help to lower repair cost.
Specifications
- Inlet sizes 16” – 20”
- Inlet ratings: ANSI Class 300
- Outlet sizes 18” – 24”
- Outlet ratings: ANSI Class 150
- Orifice sizes 114.0 sq. in., 143.0 sq. in., 176.0 sq. in. and 200.0 sq. in.
- Set pressure range 50 psig to 300 psig
- Temperature range 250°F to 550°F
- Carbon steel vase and 316 stainless steel internal components
Standards and Regulations
ASME B & PVC, Section VIII
-
