Masoneilan SVI3 Digital Valve Positioner for pneumatic control valves

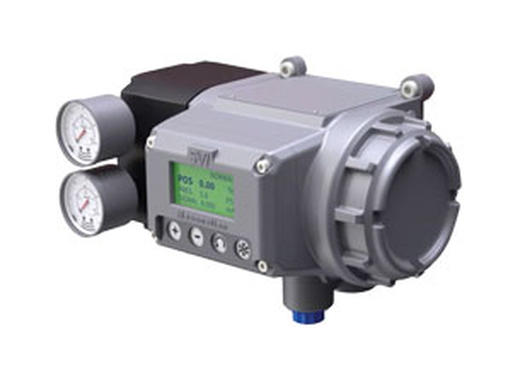

Masoneilan SVI3, a user-friendly digital valve positioner
The Masoneilan SVI3 uses advanced control and diagnostic algorithms, along with field-proven noncontact position sensing technology, the SVI delivers accurate, responsive, and reliable positioning performance.
Digital Valve Positioner for pneumatic control valves.
Masoneilan SVI3 Key Features and Benefits:
Reliable and Accurate:
- Built on 20+ years and billions of hours of field-proven valve position sensing technology, control algorithms, and advanced performance pneumatic design
- Extended temperature range down to -55 degC
Increases Plant Efficiency:
- Online Valve diagnostics – 19 new diagnostics to continuously monitor valve health while the valve is in operation
- Data Storage – up to 1 year of diagnostic data stored within the device – trend and identify valve problems before they impact plant operation
- Improved pneumatic performance – 40% reduction in steady-state air consumption, with a 15% increase in air delivery
Simple and Easy to Use :
- Simplified commissioning - “SMART CAL” single button setup and calibration
- Improved user interfaces and integration software to all major control systems
- One device – modular platform to support future upgrades
Masoneilan SVI3 Specifications:
Signal - Communication
- HART 7 over 4-20mA
Diagnostics
- Positioner Diagnostics
- Advanced Diagnostics
- Online Valve Diagnostics:
Construction / Materials
- Copper-free Aluminum Housing
Operating Temperature
- -55°C to +85°C
Pneumatics Action
- Single Acting, fail-safe
- Rotary and linear
Supply Pressure
- 20 to 120psi
Air Delivery
- 410 SLPM @ 30psi
Certification
ATEX, IECEx, US, and Canada approvals (in process, pending) for:
- Flameproof/Explosion-proof
- Intrinsic Safety
- Dust Ignition proof
- Increased Safety
