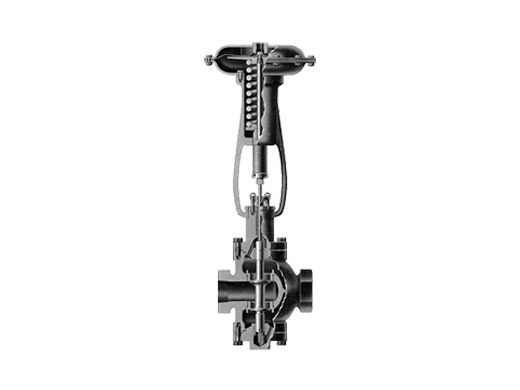

Masoneilan 525-526-series Pressure Reducing, Back Pressure & Differential Pressure Regulators
Masoneilan 500 Series Regulators
The 10900 Series actuators are designed for use with the 500 Series regulators for reducing, back pressure and differential pressure applications.
525-526 Series Key Features and Benefits:
- Top and Bottom Guiding
A well-accepted industry standard, particularly suited for double-seated plugs to provide adequate support against side loads. - High Capacity with Low Recovery
Flow capacity is at top levels for contemporary double-seated regulators and is attained with very little pressure recovery as indicated by a high critical flow factor. - Reduced Capacity Trim
0.4 Factor Trim - the most practical double seated trim design giving a substantial reduction in capacity while maintaining desirable flow characteristics. - High-Performance Materials
Materials of construction have been selected for high performance and long life when handling the high-pressure drop capabilities of the valve. - High-Temperature Applications
For temperatures over the rating of the diaphragm material, the regulator must be mounted with the actuator below the centerline of the regulator body. The diaphragm will be protected from the high temperature by a condensate barrier in the sensing line and actuator diaphragm case. If installed otherwise, an adequate condensate barrier must be incorporated. Consult your VSI Masoneilan Product Expert for more information. - Configurations
Models 525 and 526 Regulators are designed for use with the 10900 Series Actuators for reducing, back pressure and differential pressure applications.
Specifications
Function
- Pressure Reducing (525)
- Differential Pressure Reducing (525-50)
- Back Pressure (526)
- Differential Back Pressure (526-50)
Service
- Steam, Gas, Liquids
Size
- ¾” through 4” (20 through 100 mm)
Ratings & Connections
- Flanged : ASME CL150-600
- Welded: BW or SW
- Screwed: NPT ¾” through 2” (20-50 mm)
Body
- Type: High Capacity Globe with Double Seated Top and Bottom Guided Plug
- Materials: Carbon steel, stainless steel
Trim
- Plug Type: Disc
- Seat Ring: Threaded
- Guide: Heavy Top and Bottom Guided
- Capacity: Full Area, Reduced Capacity in All Sizes
Actuator
- Type: 10900 Spring Diaphragm
