Distributor of Masoneilan 41005 Series Cage Guided Valves

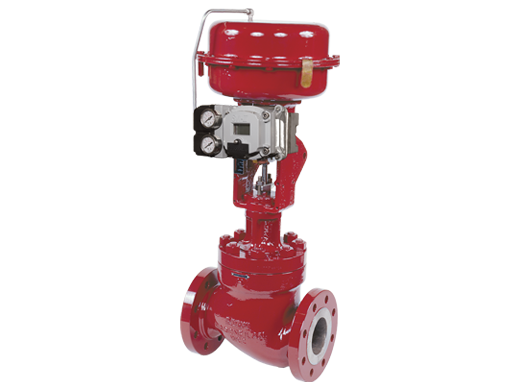

Masoneilan™ 41005 Series Heavy duty, globe-style control valves
Dependable globe-style control valve solutions for maximum performance in severe service conditions
The Masoneilan 41005 Series heavy duty control valve features balanced trim configurations. This product line offers efficient and stable operation under demanding process conditions, including applications with high-pressure drops and large temperature variations. Optional features include noise attenuation trim, anti-cavitation designs, and various balance seal options to meet a wide range of pressure and temperature requirements.
Masoneilan™ 41005 Series Key Features and Benefits:
- Balanced trim design allows the use of smaller actuators to reduce overall assembly size and weight
- Heavy cage-guided construction offers dynamic support and trim alignment for resistance against flow-induced vibration throughout the entire valve stroke range. Heavy guiding of the plug enhances throttling control performance resulting in high process yields
- Low soft-goods parts count for improved valve reliability and reduced maintenance costs
- Reliable performance with standard solutions to control noise, cavitation, and valve leakage improving plant operating efficiency.
Masoneilan™ 41005 Series Specifications:
Size
- 2” through 24” (50 through 600 mm)
Ratings & Connections
- Flanged: ANSI 150 – 2500, UNI-DIN 10 - 400
- Welded: BW or SW
- Screwed: NPT 2” (50 mm)
Body Materials
- Carbon steel; stainless steel; chrome-moly
Actuators
- Model 87/88 multi-spring diaphragm; 51/52/53 piston-cylinder
Trim
- Balanced cage-guided trim; Lo-dB, anti-cavitation and VRT (Variable Resistance Trim), single and multiple cages are available
Inherent Characteristics
- Linear or equal percentage
