Distributor of Masoneilan 12400 Series Digital Level Transmitters

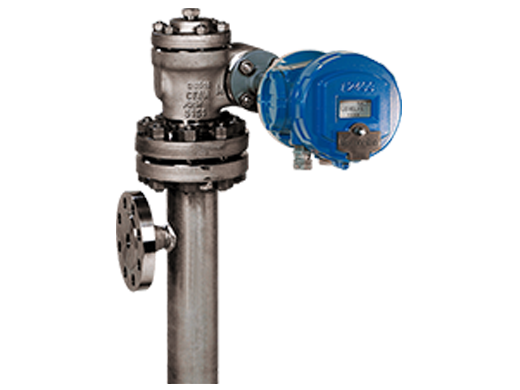

Masoneilan 12400 Series Digital Level Transmitter/Controller
The Masoneilan 12400 Series Digital Level Transmitter/Controller from Baker Hughes marks a significant evolution in process control. The SIL2-capable 12400 Series advanced design reduces complexity, saving you time and money, and delivering precise performance.
The Masoneilan 12400 Series from Baker Hughes.
The 12400 Series pneumatic level controllers are used to control and/or transmit the level in a tank with one or two fluids (interface service).
Masoneilan 12400 Series Key Benefits:
- Ease of Use
While the Masoneilan 12400 series transmitter/ controller offers powerful measurement functionality, it delivers efficiency for simplified ownership and operations. - Easy Installation
Local and remote installation are available via three explosion-proof pushbuttons or the HART® communication protocol, and the 12400 Series transmitter can be calibrated with or without fluid, including fluid with an unknown specific gravity. - Simple Operation
The 12400 Series instrument offers automated configuration, calibration and diagnostic functions as well as an easy-to-read, seven-language LCD display. - Interoperability
Field data integration is seamless across multiple communication platforms: Baker Hughes Masoneilan ValVue™ software, Device Description (DD) and Device Type Manager (DTM), any HART®- compatible handheld and ValVue software plug-in and snap-on.
Range
- 14” through 120” (355 through 3048 mm)
Ratings and connections
- Flanged: ANSI 150 – 2500, UNI-DIN 10 - 100; screwed: NPT-F (1 1/2”, 2”); welded
Body materials
- Carbon steel; stainless steel; chrome-moly
Displacer materials
- Stainless steel; other materials on request
Torque Tube materials
- Inconel; stainless steel other materials on request
