2900/2900 TM Series Generation II

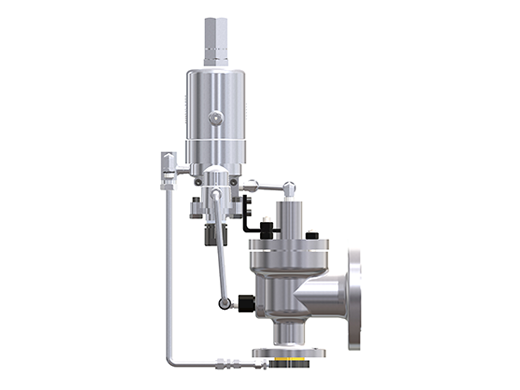

The 2900/2900 TM Series Gen II is a full-nozzle pilot-operated safety relief valve (POSRV) matching API 526 direct-spring PRV dimensions. Its patented full-nozzle integral sense design allows for easy maintenance as well as simple spring-loaded to pilot-operated PRV conversions throughout the lifecycle of the valve. The 2900 Triple Media (TM) Series is the first full nozzle POSRV engineered to perform on liquid, air/gas, and steam media and is multi-media certified to meet multiple media capacity stamping per ASME B & PVC Code Case 2787. Both valve series use the same pilot valve technology as the 3900 Series including the ‘True Zero Leakage’ modulating pilot, providing a modernized overpressure protection solution for reducing carbon footprint and emissions.
Specifications
- Inlet sizes 1” – 12”
- Inlet ratings for ASME Class 150 to 2500
- Outlet sizes 2” – 16”
- Outlet ratings for ASME Class 150 – 300
- Orifice sizes D through W
- Set pressure range 15 to 6250 psig
- Temperature range -40°F to 505°F, above 505°F with heat exchanger
- Stainless steel pilot with carbon steel main valve and stainless steel trim
Standards and Regulations
- ASME B & PVC, Section XIII (UV Designator)
- ASME Code Case 2787 - Triple Capacity Stamping
- ASME B & PVC, Section I (Liquid)
- API 526 centerline-to-face dimensions for Spring Loaded Safety Relief Valves
- Pressure Equipment Directive
