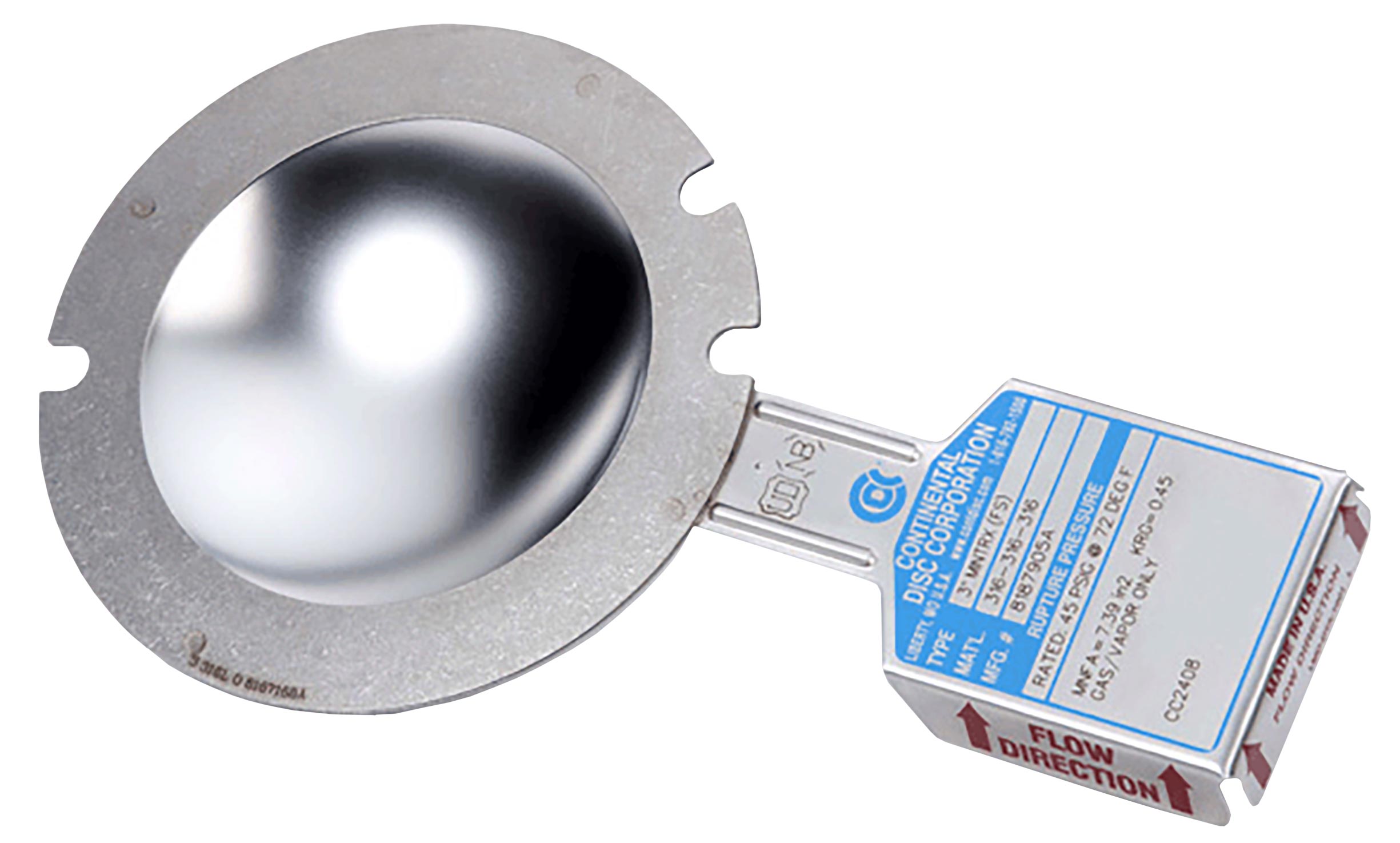

MINTRX® RUPTURE DISC - CDC
Precision failure-initiating indent, high-precision scoring and a variety of construction materials make the MINTRX rupture disc a versatile and economical overpressure protection option.
MINTRX burst pressures are in the mid-range of the TRX line of scored, reverse-acting rupture discs. Learn more about the ULTRX, for high-pressure applications, or the STAR X, for ultra low-pressure applications.
MINTRX Rupture Disc Features:
The MINTRX rupture disc is a low-pressure, scored, reverse-acting rupture disc – a non-reclosing differential pressure-relief device – that protects equipment, vessels and systems from overpressure damage. It also excels at safely isolating pressure-relief valves.
The MINTRX features a non-fragmenting design with uniform petal opening-flow characteristics.
The MINTRX is designed with a standard zero manufacturing range. This enables the system to operate up to 90% of the specified rupture disc burst pressure. Each rupture disc is proof pressure-tested to 90% of the specified rating prior to shipment.
Innovative encapsulating rings
Our encapsulating rings prevent over-torquing from affecting the burst accuracy of the MINTRX. They also:
- Hold the rupture disc in the proper position
- Prevent disc slippage when insufficient bolt load is applied to the companion flanges
- Allow for easier installation
No vacuum support necessary
The MINTRX withstands full vacuum without affecting the burst pressure setting or reliability. No additional components, such as a vacuum support, are required – which means less cost and less worry for you.
Corrosive application? No problem.
The MINTRX works well in corrosive media environments. Versatile material selection and use of thicker materials contribute to outstanding corrosion resistance. A fluoropolymer liner may be used on the process side for additional corrosion protection.
