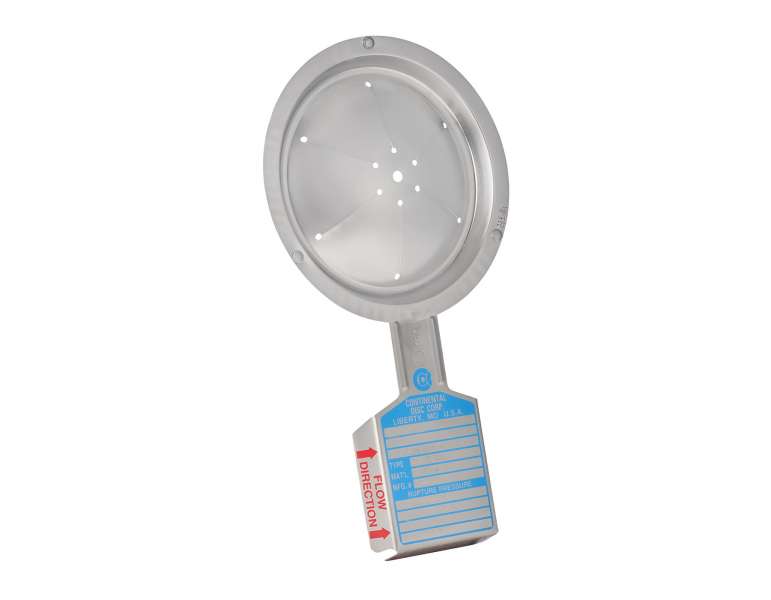

COMPOSITE 30° SEAT RUPTURE DISC
A versatile line of high-performance, corrosion-resistant rupture discs, our composite discs are ideal for systems that require lower burst pressures than standard discs can provide.
Our composite rupture discs consist of two or more metallic or non-metallic components. The components typically consist of a metallic top section and a metallic or non-metallic seal with optional vacuum support, protective rings, gaskets or outlet liner.
This rupture disc is a 30° angular “light lip” seat, ideal for normal operating pressures. If you’re looking for superior metal-to-metal sealing, choose our composite flat seat design instead .
COMPOSITE 30° Seat Rupture Disc Features:
A composite disc for every application
We manufacture several preformed composite rupture discs to fit numerous applications.
The metallic top section can be manufactured from various materials, depending on your application and corrosion-resistance requirements. Seals, protective rings, gaskets and outline liners can also be manufactured from a variety of materials to meet your needs. Contact us or see our preformed composite rupture disc brochure for complete details.
Our unique seven-hole design
Our Preformed Composite rupture discs also feature a seven-hole pattern, positioned at the apex of the rupture disc’s top section. This unique configuration, in combination with the pre-cut sections along the dome, provide non-fragmenting characteristics when used with a non-metallic or fluoropolymer seal.
By using this seven-hole design, thicker, more durable materials can be used to manufacture the rupture disc, while still achieving the high 80% operating-to-burst-pressure ratio.
Various seal material options, such as fluoropolymers and exotic metals, help ensure excellent corrosion resistance. Our non-metallic seals are essential to minimize fragmentation.
Pre-formed or flat style?
We offer two composite-type rupture disc design styles, a preformed style, like the CDC or PLV rupture disc, and a flat style, like CDC’s ENVIRO-SEAL rupture disc.
Our preformed styles include:
CDC type – Employs a slotted metallic top section and fluoropolymer or metallic seal on the top section’s process side. Provides corrosion protection and excellent performance in low-pressure applications where no back pressure or vacuum is expected.
CDCV type – Same design as the CDC type, with the addition of vacuum support installed on the process side of the seal. Provides process side corrosion protection and support for full vacuum conditions.
PL type – Similar to CDC type, with the addition of a corrosion-resistant fluoropolymer liner placed on the outlet side of the top section.
PLV type – Same design as the PL type, with the addition of a vacuum support on the outlet side of the top section. The outlet liner is positioned above the vacuum support, protecting the metallic top section and the vacuum support from corrosive elements in the atmosphere.
